KONUS 275 3-9x40 viewfinder

The KONUSPRO 275 visors have a simple design, clean and easy to use thanks to its reticle, which has calibrated graphics for a range of distances between 68 and 251 meters.

Increases: 3-9x40
Aluminum tube construction in one piece
Focal plane: second
Diameter tube: 25,4mm
Regulable 1/4 MOA
Sealing with nitrogen
Multilayer lens coating

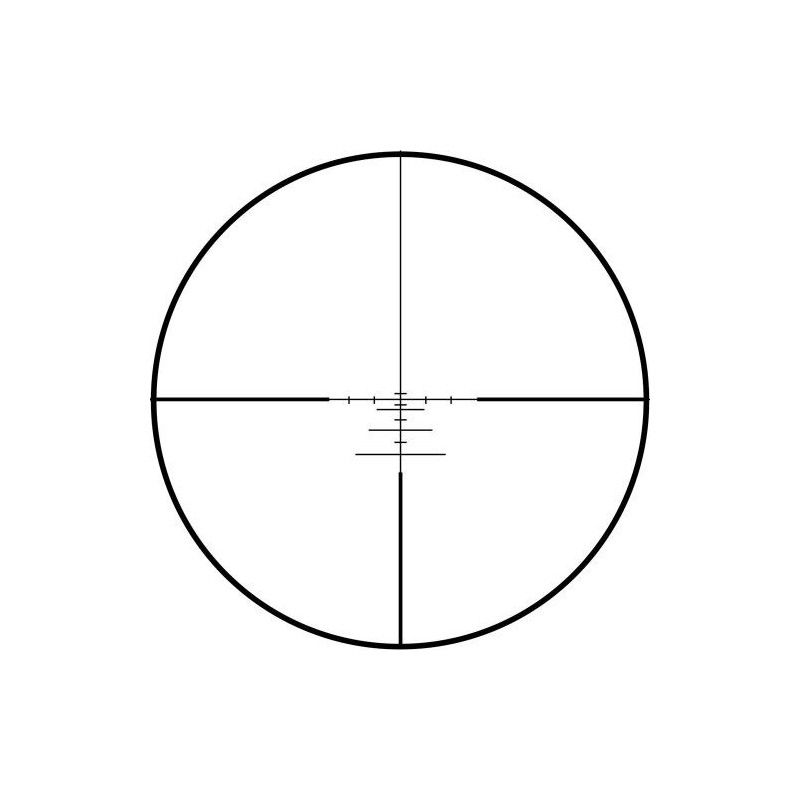

Ballistic reticle 275
Visual field at 100 m: 11.5-3.8 m.
Viewfinder length: 315 mm
Weight: 399 g.
Distance from the eye to the eyepiece: 76 mm.
Pupil of exit: 13,3-4,4 mm.
Regulation range at 100 m: 1.3 m.
Minimum ring height: 8.5 mm
